IEST Instruments
Affordable 0.01% High-precision Battery Cycler

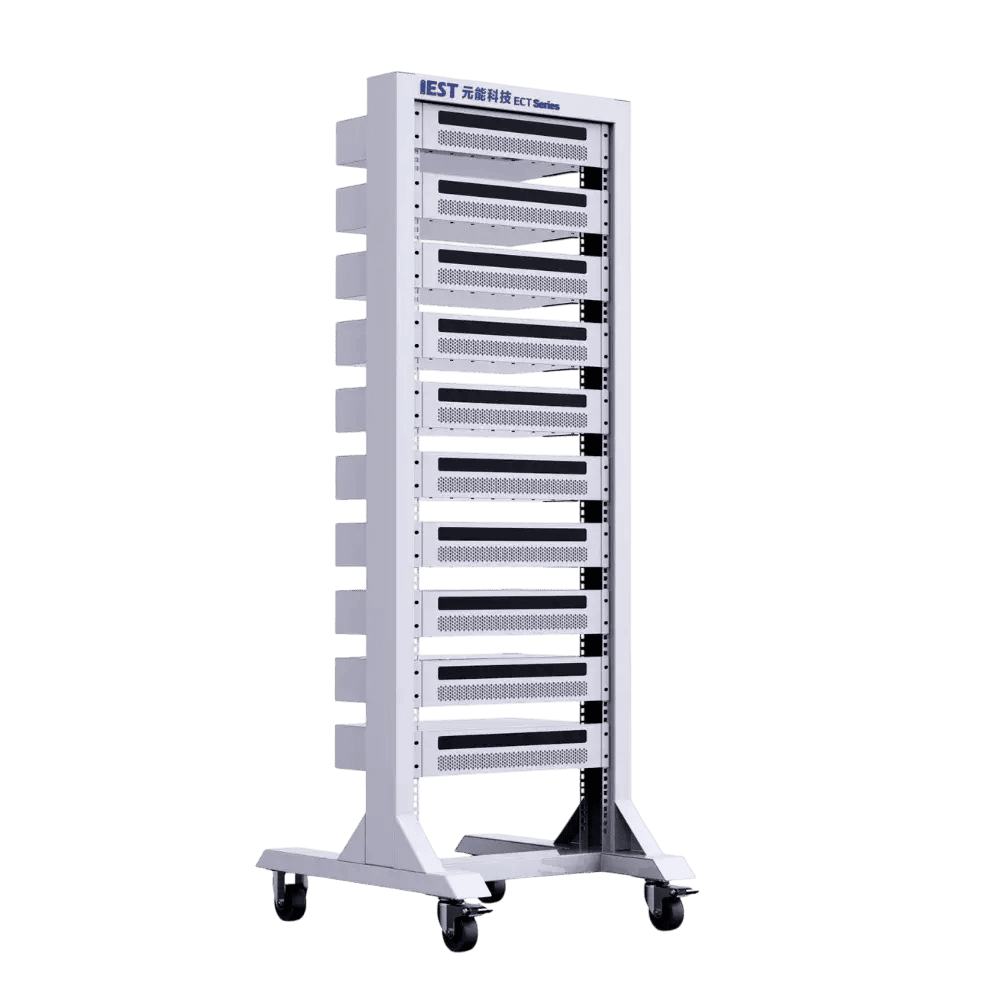

IEST Electrochemical Property Analyzer ECT Series
-
0.01% Current & Voltage Control Accuracy -
Lab-Grade Accuracy at Economical Cost -
8-Channel Potentiostat / Galvanostat
-
Three-electrode Setups
-
4 Testing Ranges Auto Switch
-
Supports electrochemical tests(GITT/PITT/CA/CP) with microampere-level current control.
0.01% High-Precision Current & Voltage Testing.
The 0.01% testing accuracy can precisely measure the specific capacity of new materials and detect subtle side reactions during the initial stages of battery cycling, This allows for a comprehensive performance evaluation and lifetime prediction of the battery in a short period.
Innovative Solutions of IEST.
-
Provides accurate benchmark data for lifespan prediction, inventory efficiency, self-discharge, and micro-reaction testing, with voltage and current precision of 0.01%.
-
Supports a wide range of cell types, capacitor materials, half-cell, three-electrode, coin cell, and small-capacity testing.
-
Triple protection (software, hardware, firmware) ensures safe operation for both equipment and samples.
-
Supports electrochemical tests (GITT, PITT, CA, CP) with microampere-level current control.
-
Flexible auxiliary channel integration for temperature control, surface temperature monitoring, three-electrode setups, and pressure detection.
-
Online calibration and independent operation of channels without interference.
-
Private cloud platform and cloud server backup ensure data security and confidentiality.
GITT/PITT Test.
Auxiliary Channel.

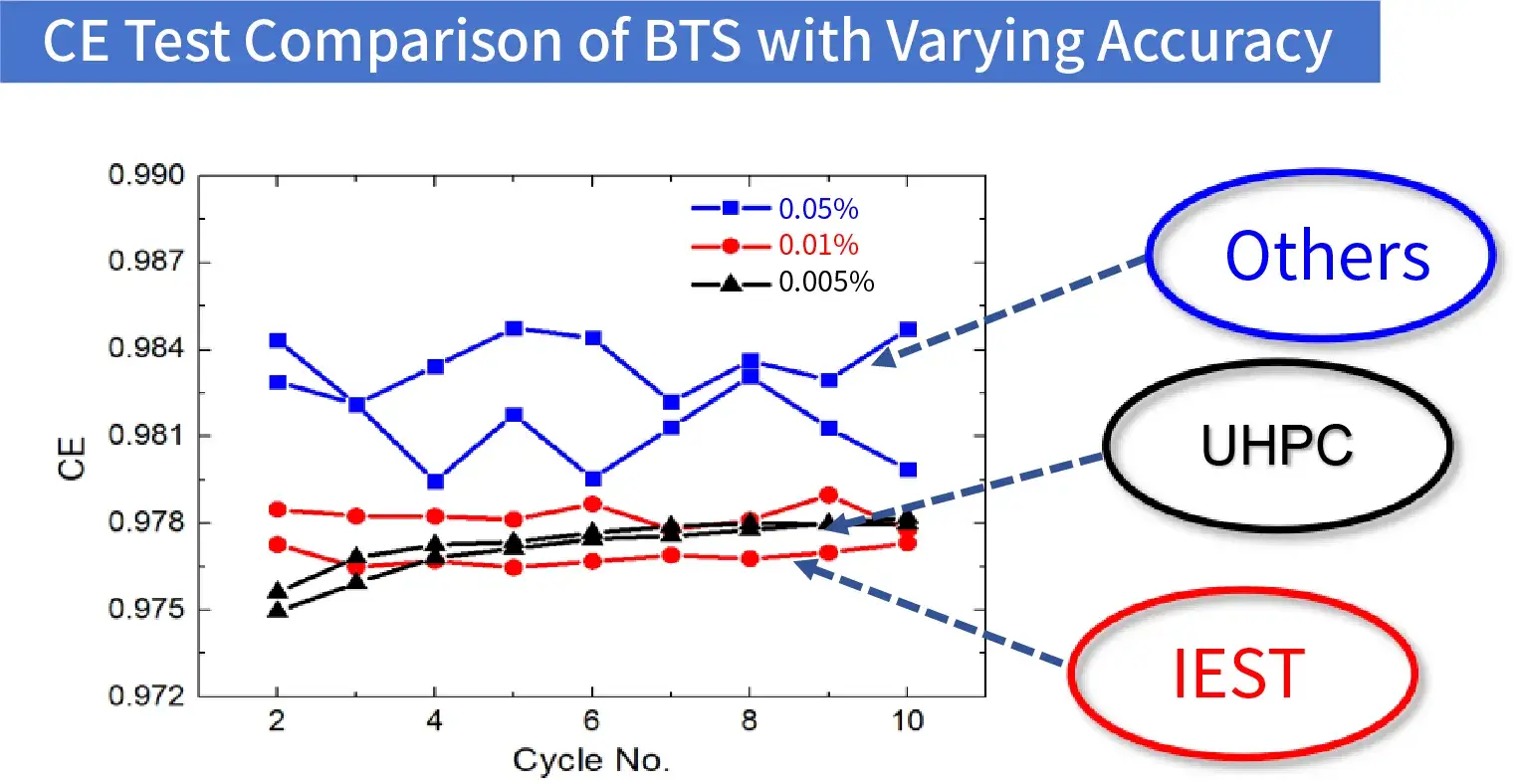

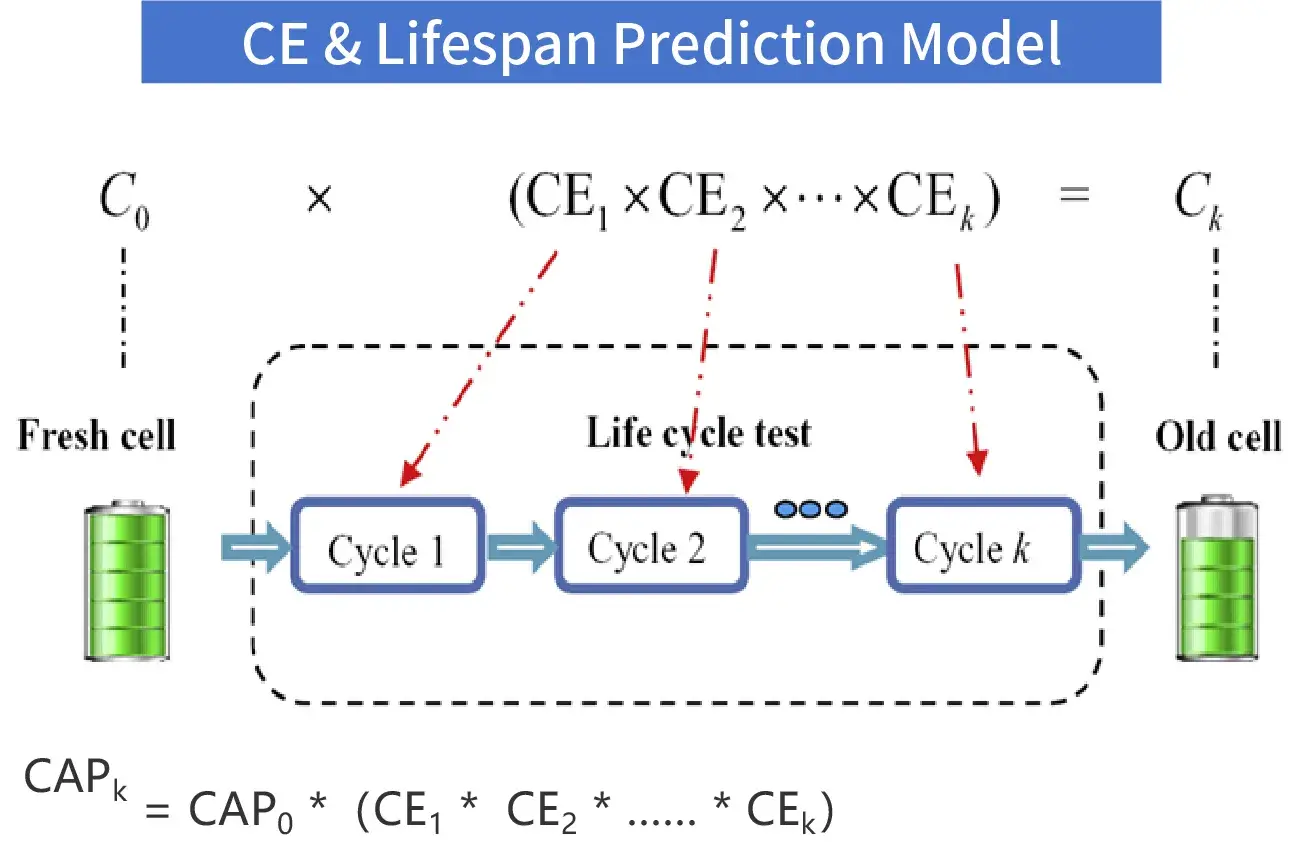

Case 1: Precise CE & Lifespan Prediction.
For a 100Ah battery:
With an average CE test accuracy of 99.95%, after 500 cycles,CAPk=100*0.9995 500 =77.88Ah
With an average CE test accuracy of 99.955%, after 500 cycles, CAPk= 100*0.99955 500=79.85Ah
The difference is 1.97Ah, meaning the model accuracy differs by 1.97%!
- High-precision CE testing allows for early performance assessment, enabling rapid battery lifespan prediction!
- Lifespan prediction requires accuracy within 0.1% and noise

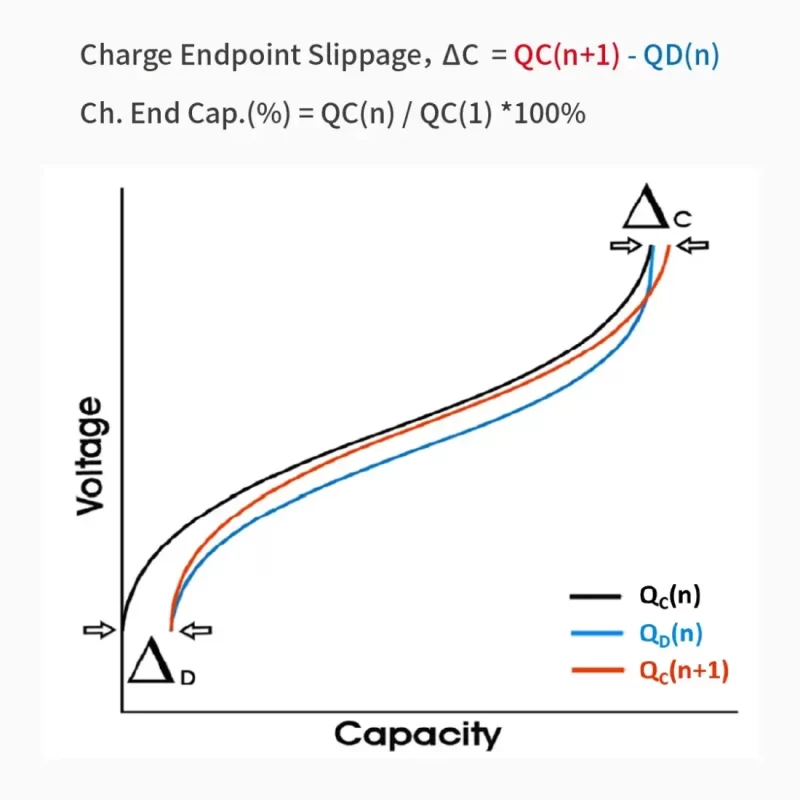

Case 2: Side Reaction & Material Evaluation.
ΔC or Ch. End Cap measurement requires high-precision charge-discharge equipment. Low accuracy will lead to inaccurate results.

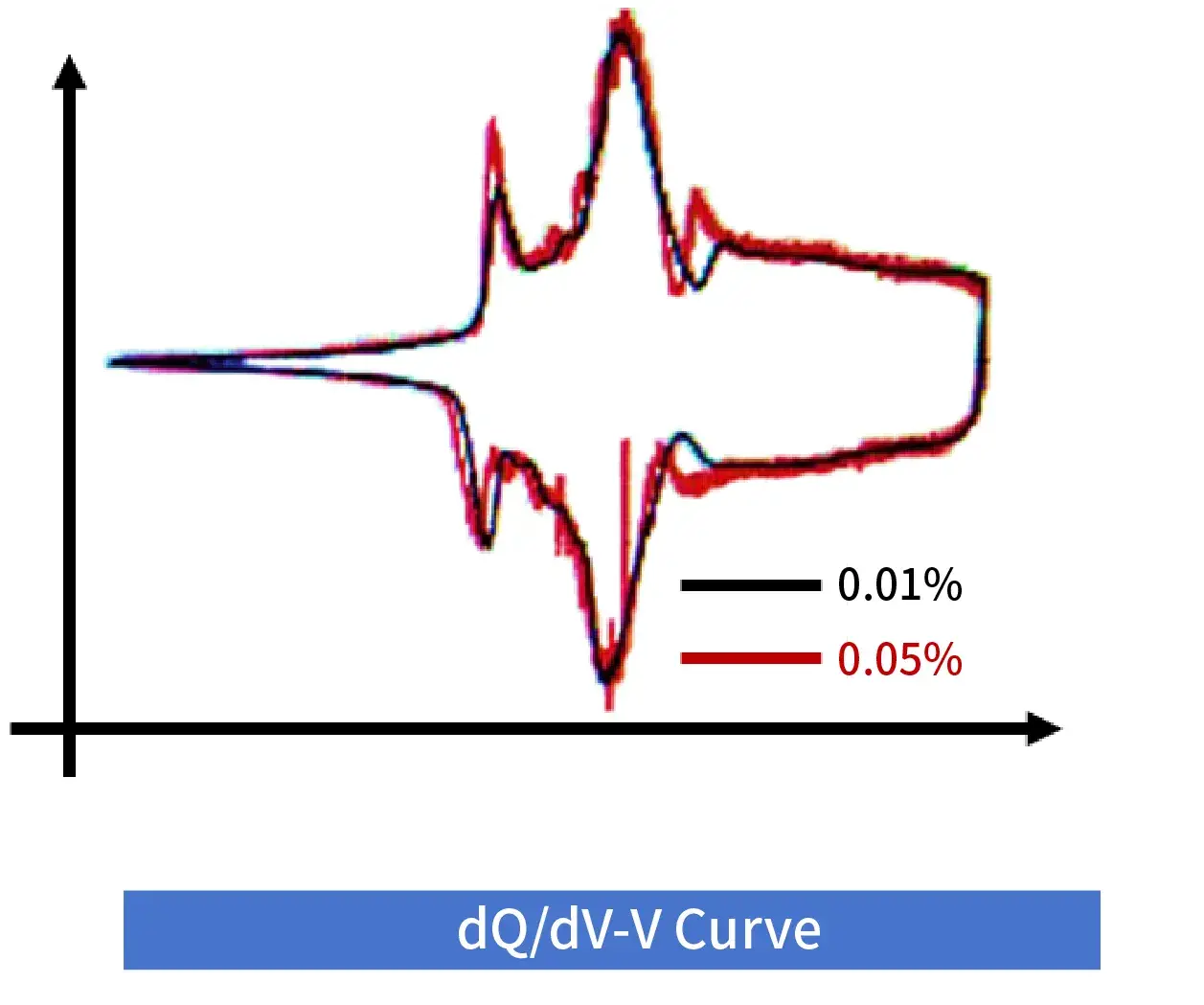

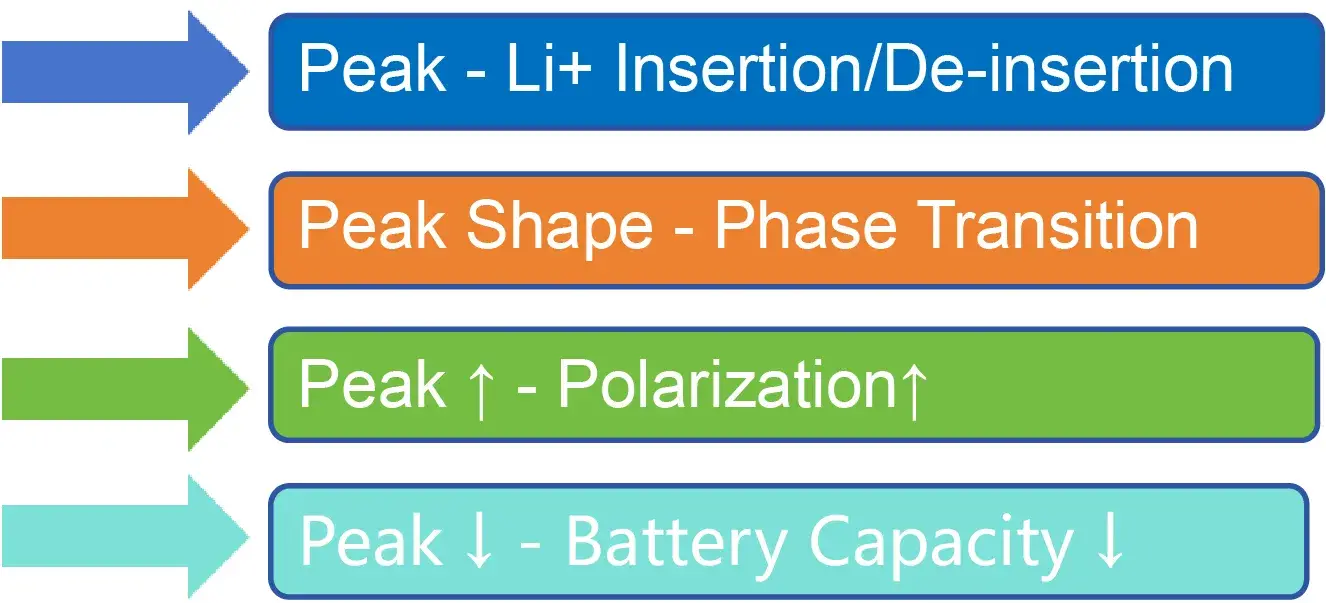

Case 3: Battery Capacity Decay Factor Analysis.
High-precision testers ensure smooth curves and capture small phase change peaks!

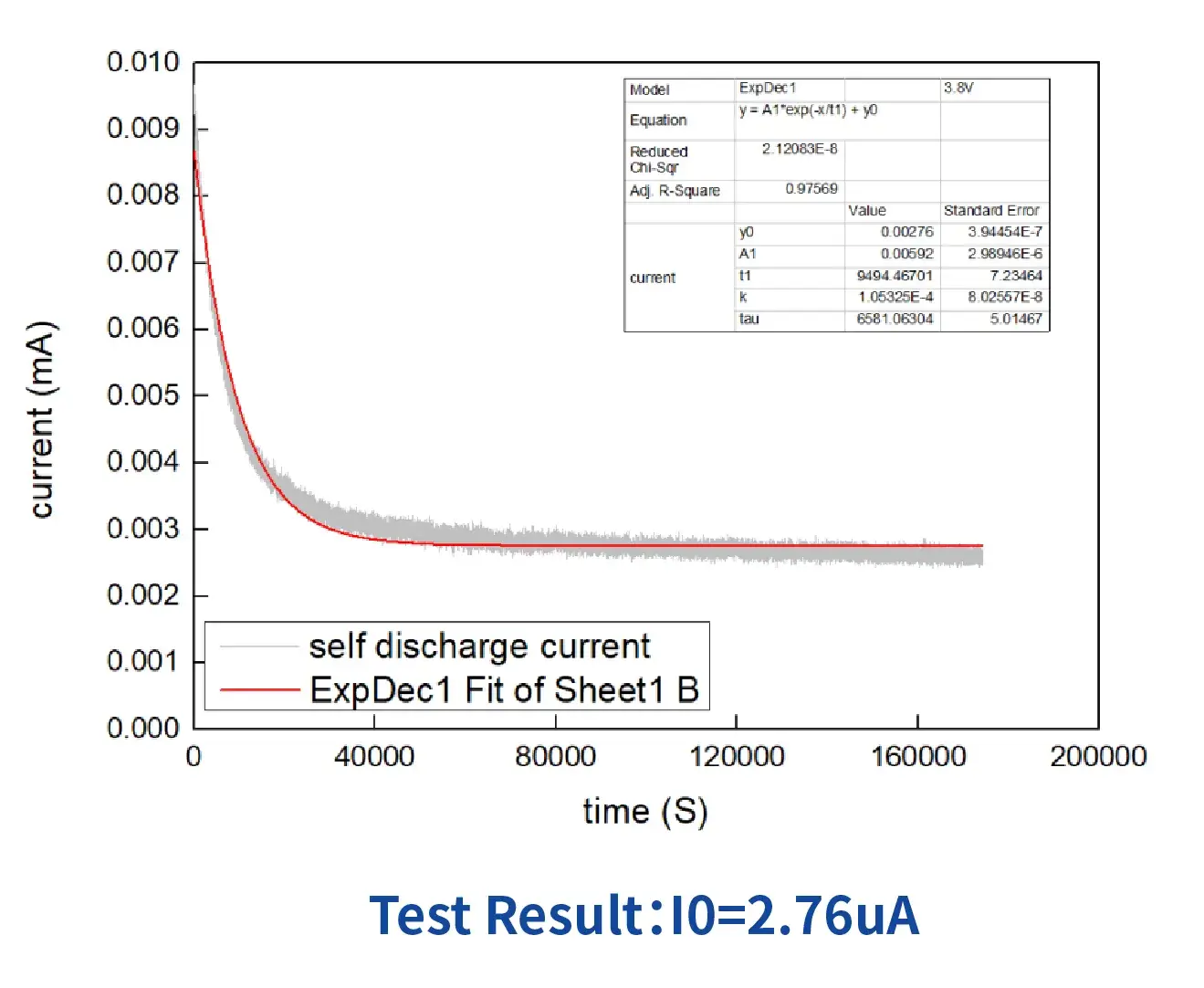

Case 4: Leakage Current.
Charge to the target voltage, stabilize under constant voltage, and assess leakage current by the zero-current difference.
Test Plan:
1. Button Cell:
Electrodes: Ternary(фl4mm)vs. Lithium(ф20mm)
Capacity: 2mAh
Equipment: ECT6008-5V10mA
2. Test Process:
Constant current, constant voltage charging: 0.8mA,3.8V, for 72 hours.
High-precision testers ensure accurate leakage current measurement.
